numpy で2変数の回帰分析
- polyfit.png:
- np.polyfit(x, y, n)
- n次式で2変数の回帰分析
- np.polyval(p, t):
- pで表される多項式に t を代入し、値を計算して返す
- p[0]*t**(N-1) + p[1]*t**(N-2) + ... + p[N-2]*t + p[N-1]
#!/usr/bin/env python #coding: utf-8 import matplotlib.pyplot as plt import numpy as np def read(): labels = (("car_price", "gas_price", "weight", "co2", "power", "duration")) ret = [] ret.append((8895,33,2560,97,113,12)) ret.append((7402,33,2345,114,90,8)) ret.append((6319,37,1845,81,63,12)) ret.append((6635,32,2260,91,92,13)) ret.append((6599,32,2440,113,103,13)) ret.append((8672,26,2285,97,82,12)) ret.append((7399,33,2275,97,90,13)) ret.append((7254,28,2350,98,74,8)) ret.append((9599,25,2295,109,90,13)) ret.append((8748,29,2390,97,102,13)) ret.append((6488,35,2075,89,78,13)) ret.append((9995,26,2330,109,100,9)) ret.append((11545,20,3320,305,170,8)) ret.append((9745,27,2885,153,100,8)) ret.append((12164,19,3310,302,225,8)) ret.append((11470,30,2695,133,110,9)) ret.append((9410,33,2170,97,108,13)) ret.append((13945,27,2710,125,140,13)) ret.append((13249,24,2775,146,140,10)) ret.append((10565,23,2640,151,110,8 )) ret.append((10320,26,2655,133,95,9 )) ret.append((10945,25,3065,181,141,12)) ret.append((9483,24,2750,141,98,9 )) ret.append((12145,26,2920,132,125,13)) ret.append((12459,24,2780,133,110,12)) ret.append((10989,25,2745,122,102,13)) ret.append((17879,21,3110,181,142,12)) ret.append((11650,21,2920,146,138,13)) ret.append((9995,23,2645,151,110,9 )) ret.append((11499,23,2935,135,130,13)) ret.append((11588,27,2920,122,115,13)) ret.append((18450,23,2985,141,114,10)) ret.append((24760,20,3265,163,160,13)) ret.append((13150,21,2880,151,110,10)) ret.append((12495,22,2975,153,150,9 )) ret.append((16342,22,3450,202,147,10)) ret.append((15350,22,3145,180,150,9 )) ret.append((13195,22,3190,182,140,10)) ret.append((14980,23,3610,232,140,8 )) ret.append((23300,21,3480,180,158,13)) ret.append((17899,22,3200,180,160,13)) ret.append((13150,21,2765,151,110,9 )) ret.append((21498,23,3480,180,190,10)) ret.append((16145,23,3325,231,165,10)) ret.append((14525,18,3855,305,170,8 )) ret.append((17257,20,3850,302,150,10)) ret.append((15395,18,3735,202,150,10)) ret.append((12267,18,3665,182,145,10)) ret.append((14944,19,3735,181,150,13)) return labels, np.array(ret) def work(x, y, xLabel, yLabel): fig = plt.figure() ax = fig.add_subplot(1,1,1) poly = np.polyfit(x, y, 1) # 1次式で回帰分析 yy = np.polyval(poly, x) # poly[0]: 傾き, poly[1]: 切片 ax.plot(x,yy) poly = np.polyfit(x, y, 2) # 2次式で回帰分析 xx = np.arange(x.min(),x.max(),1000) yy = np.polyval(poly,xx) # poly[0] * t^2 + poly[1] * t^1 + poly[0] ax.plot(xx,yy) ax.plot(x,y,linestyle="None",marker="o") ax.set_xlabel(xLabel) ax.set_ylabel(yLabel) fig.savefig("polyfit.png",bbox_inches="tight") if __name__ == "__main__": labels, X = read() work(X[:,0], X[:,4], labels[0], labels[4])
numpy で3変数の回帰分析
polyfit.png:
- np.polyfit(x, zip(y,z), n)
- n次式で3変数の回帰分析
- 3Dデータのプロット
- ax = fig.add_subplot(1, 1, 1, projection="3d", azim=<角度>)
- ax.plot(x,y,z)
- azim に値を代入して視点を変える
#!/usr/bin/env python #coding:utf-8 from mpl_toolkits.mplot3d import Axes3D import matplotlib.pyplot as plt import numpy as np def read(): labels = (("car_price", "gas_price", "weight", "co2", "power", "duration")) ret = [] ret.append((8895,33,2560,97,113,12)) ret.append((7402,33,2345,114,90,8)) ret.append((6319,37,1845,81,63,12)) ret.append((6635,32,2260,91,92,13)) ret.append((6599,32,2440,113,103,13)) ret.append((8672,26,2285,97,82,12)) ret.append((7399,33,2275,97,90,13)) ret.append((7254,28,2350,98,74,8)) ret.append((9599,25,2295,109,90,13)) ret.append((8748,29,2390,97,102,13)) ret.append((6488,35,2075,89,78,13)) ret.append((9995,26,2330,109,100,9)) ret.append((11545,20,3320,305,170,8)) ret.append((9745,27,2885,153,100,8)) ret.append((12164,19,3310,302,225,8)) ret.append((11470,30,2695,133,110,9)) ret.append((9410,33,2170,97,108,13)) ret.append((13945,27,2710,125,140,13)) ret.append((13249,24,2775,146,140,10)) ret.append((10565,23,2640,151,110,8 )) ret.append((10320,26,2655,133,95,9 )) ret.append((10945,25,3065,181,141,12)) ret.append((9483,24,2750,141,98,9 )) ret.append((12145,26,2920,132,125,13)) ret.append((12459,24,2780,133,110,12)) ret.append((10989,25,2745,122,102,13)) ret.append((17879,21,3110,181,142,12)) ret.append((11650,21,2920,146,138,13)) ret.append((9995,23,2645,151,110,9 )) ret.append((11499,23,2935,135,130,13)) ret.append((11588,27,2920,122,115,13)) ret.append((18450,23,2985,141,114,10)) ret.append((24760,20,3265,163,160,13)) ret.append((13150,21,2880,151,110,10)) ret.append((12495,22,2975,153,150,9 )) ret.append((16342,22,3450,202,147,10)) ret.append((15350,22,3145,180,150,9 )) ret.append((13195,22,3190,182,140,10)) ret.append((14980,23,3610,232,140,8 )) ret.append((23300,21,3480,180,158,13)) ret.append((17899,22,3200,180,160,13)) ret.append((13150,21,2765,151,110,9 )) ret.append((21498,23,3480,180,190,10)) ret.append((16145,23,3325,231,165,10)) ret.append((14525,18,3855,305,170,8 )) ret.append((17257,20,3850,302,150,10)) ret.append((15395,18,3735,202,150,10)) ret.append((12267,18,3665,182,145,10)) ret.append((14944,19,3735,181,150,13)) return labels, np.array(ret) def work(x, y, z, xLabel, yLabel, zLabel): fig = plt.figure() ax = fig.add_subplot(2,2,1, projection="3d") bx = fig.add_subplot(2,2,2, projection="3d", azim = 30) cx = fig.add_subplot(2,2,3, projection="3d", azim = 120) dx = fig.add_subplot(2,2,4, projection="3d", azim = 210) poly = np.polyfit(x, zip(y,z), 1) # 1次式で回帰分析 yy = np.polyval(poly[:,0], x) # poly[0][0]: y傾き, poly[1][0]: y切片 zz = np.polyval(poly[:,1], x) # poly[0][1]: z傾き, poly[1][1]: z切片 ax.plot(x,yy,zz) bx.plot(x,yy,zz) cx.plot(x,yy,zz) dx.plot(x,yy,zz) poly = np.polyfit(x, zip(y,z), 2) # 2次式で回帰分析 xx = np.arange(x.min(),x.max(),1000) yy = np.polyval(poly[:,0],xx) zz = np.polyval(poly[:,1],xx) ax.plot(xx,yy,zz) bx.plot(xx,yy,zz) cx.plot(xx,yy,zz) dx.plot(xx,yy,zz) ax.plot(x, y, z, linestyle="None",marker="o") ax.set_xlabel(xLabel) ax.set_ylabel(yLabel) ax.set_zlabel(zLabel) ax.set_title("default (azim = -60)") bx.plot(x, y, z, linestyle="None",marker="o") bx.set_xlabel(xLabel) bx.set_ylabel(yLabel) bx.set_zlabel(zLabel) bx.set_title("azim = 30") cx.plot(x, y, z, linestyle="None",marker="o") cx.set_xlabel(xLabel) cx.set_ylabel(yLabel) cx.set_zlabel(zLabel) cx.set_title("azim = 120") dx.plot(x, y, z, linestyle="None",marker="o") dx.set_xlabel(xLabel) dx.set_ylabel(yLabel) dx.set_zlabel(zLabel) dx.set_title("azim = 210") fig.tight_layout() fig.savefig("polyfit.png",bbox_inches="tight") if __name__ == "__main__": labels, X = read() work(X[:,0], X[:,2], X[:,4], labels[0], labels[2], labels[4])
matplotlibでサーファイスプロットする
schwefel.png:
- surf = ax.plot_surface(x, y, z)
- 三次元プロット
- fig.colorbar(surf)
- カラーバーの表示
- plot_surface関数のキーワード(一部)
- cmap: カラーマップの指定 (hot, gray, coolwarm など)
- cstride: x方向の色のプロットのステップ数(デフォルト値: 10)
- rstride: y方向の色のプロットのステップ数(デフォルト値: 10)
- colorbar関数のキーワード
- shrink: カラーバーを縦の長さを何倍にするか (デフォルト値: 1.0)
- aspect: カラーバーの横の長さ(値が大きいほど細くなる) (デフォルト値: 20)
#!/usr/bin/env python #coding:utf-8 from mpl_toolkits.mplot3d import Axes3D from matplotlib import cm import matplotlib.pyplot as plt import numpy as np def schwefel(x, y): return 418.9829 * 2 - (x * np.sin(np.sqrt(abs(x))) + \ y * np.sin(np.sqrt(abs(y)))) def work(): N = 100 MIN_X = -500 MAX_X = 500 x = np.linspace(MIN_X, MAX_X, N) y = np.linspace(MIN_X, MAX_X, N) x, y = np.meshgrid(x, y) z = schwefel(x, y) fig = plt.figure() ax = fig.add_subplot(1, 1, 1, projection="3d") surf = ax.plot_surface(x, y, z, cstride=1, rstride=1, cmap=cm.coolwarm, linewidth=0, antialiased=False) fig.colorbar(surf, shrink=0.5, aspect=10) ax.set_title("Schwefel") fig.savefig("schwefel.png", bbox_inches="tight") if __name__ == "__main__": work()
matplotlibで等高線図を書く
schwefel.png:
- ax.contour(x, y, z, zdir=
, offset=<平面のどの位置に描画するか>)
- contour関数のオプション(一部)
- zdir: どの平面に投射するか(x, y, zのいずれか)
- offset: 平面のどの位置に描画するか
- cmap: カラーマップ
#!/usr/bin/env python #coding:utf-8 from mpl_toolkits.mplot3d import Axes3D from matplotlib import cm import matplotlib.pyplot as plt import numpy as np def schwefel(x, y): return 418.9829 * 2 - (x * np.sin(np.sqrt(abs(x))) + \ y * np.sin(np.sqrt(abs(y)))) def work(): N = 100 MIN_X = -500 MAX_X = 500 x = np.linspace(MIN_X, MAX_X, N) y = np.linspace(MIN_X, MAX_X, N) x, y = np.meshgrid(x, y) z = schwefel(x, y) fig = plt.figure() ax = fig.add_subplot(1, 1, 1, projection="3d") ax.contour(x, y, z, zdir='z', offset=0, cmap=cm.coolwarm) ax.contour(x, y, z, zdir='x', offset=MIN_X, cmap=cm.coolwarm) ax.contour(x, y, z, zdir='y', offset=MAX_X, cmap=cm.coolwarm) ax.set_title("Schwefel") fig.savefig("schwefel.png", bbox_inches="tight") if __name__ == "__main__": work()
matplotlibで等高線を書く その2
schwefel.png:
- CS = ax.contour(x, y, z, <等高線の領域数>)
- 等高線図をプロット
- ax.clabel(CS)
- 各等高線に値を記入
- contour関数のオプション (一部)
- cmap: カラーマップ
- clabel関数のオプション (一部)
- fontsize: フォントの大きさ
- inline: True なら、値の周りの等高線を消す (デフォルトはTrue)
- colors: 値の色を設定 (何も設定しない場合、等高線と同じ色となる)
#!/usr/bin/env python #coding:utf-8 from mpl_toolkits.mplot3d import Axes3D from matplotlib import cm import matplotlib.pyplot as plt import numpy as np def schwefel(x, y): return 418.9829 * 2 - (x * np.sin(np.sqrt(abs(x))) + \ y * np.sin(np.sqrt(abs(y)))) def work(): N = 100 MIN_X = -500 MAX_X = 500 x = np.linspace(MIN_X, MAX_X, N) y = np.linspace(MIN_X, MAX_X, N) x, y = np.meshgrid(x, y) z = schwefel(x, y) fig = plt.figure() ax = fig.add_subplot(1, 1, 1) CS = ax.contour(x, y, z, 5, cmap=cm.coolwarm) ax.clabel(CS, fontsize=9, inline=False, colors="black") ax.set_title("Schwefel") fig.savefig("schwefel.png", bbox_inches="tight") if __name__ == "__main__": work()
Graphviz インストール手順
Graphvis を使えば、データ構造としてのグラフの可視化を簡単に行える。まずはインストールするための手順をメモ。(※自分の環境: Windows7, Cygwin (8.15-1))
- http://www.graphviz.org/Download_windows.php より、graphviz-2.34.msi をダウンロード
- graphvis-2.34.msi をダブルクリック。インストール先は C:\cygwin\usr\local\graphviz を指定。
- PATH を通す。~/.bash_profile に以下の文を追加。
PATH="/usr/local/graphviz/bin:${PATH}"
- .bash_profile を読み込みなおす。
$ source ~/.bash_profile
- 動作確認。以下のコマンドを実行して、バージョンが表示されたらOK。
$ dot -v
Graphvis 使用例

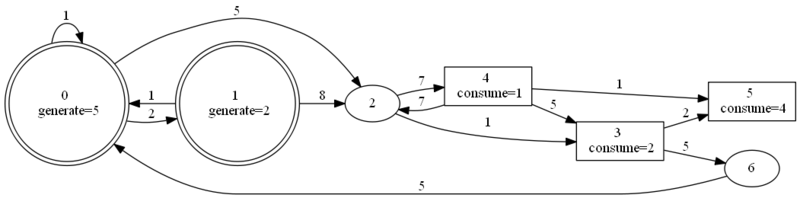

- 以下の内容で、sample.dot を作成
digraph { rankdir=LR; 0 [ shape = doublecircle, label = "0 \n generate=5" ]; 1 [ shape = doublecircle, label = "1 \n generate=2" ]; 3 [ shape = rect, label = "3 \n consume=2" ]; 4 [ shape = rect, label = "4 \n consume=1" ]; 5 [ shape = rect, label = "5 \n consume=4" ]; 0 -> 0 [ label = "1" ]; 0 -> 1 [ label = "2" ]; 0 -> 2 [ label = "5" ]; 1 -> 0 [ label = "1" ]; 1 -> 2 [ label = "8" ]; 2 -> 3 [ label = "1" ]; 2 -> 4 [ label = "7" ]; 3 -> 5 [ label = "2" ]; 3 -> 6 [ label = "5" ]; 4 -> 2 [ label = "7" ]; 4 -> 3 [ label = "5" ]; 4 -> 5 [ label = "1" ]; 6 -> 0 [ label = "5" ]; }
- 以下のコマンドを入力
$ dot -Tpng sample.dot -o sample.png
- 画像 sample.png が出力される
- 参考:
- 書いたグラフ(サンプルの2番目): http://poj.org/problem?id=1459
- 属性リスト: http://www.graphviz.org/content/attrs
- ノードの形状リスト: http://www.graphviz.org/content/node-shapes
